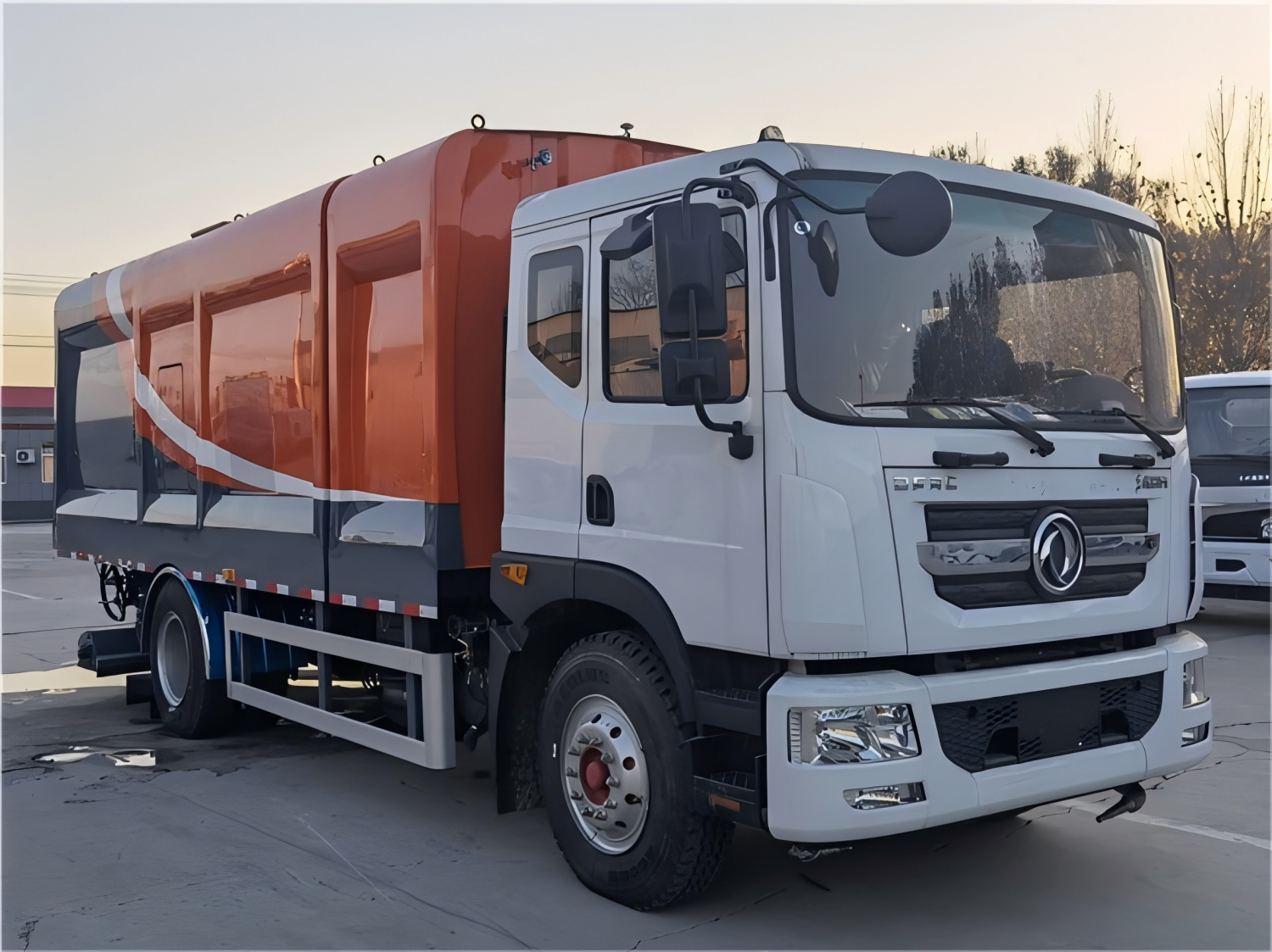

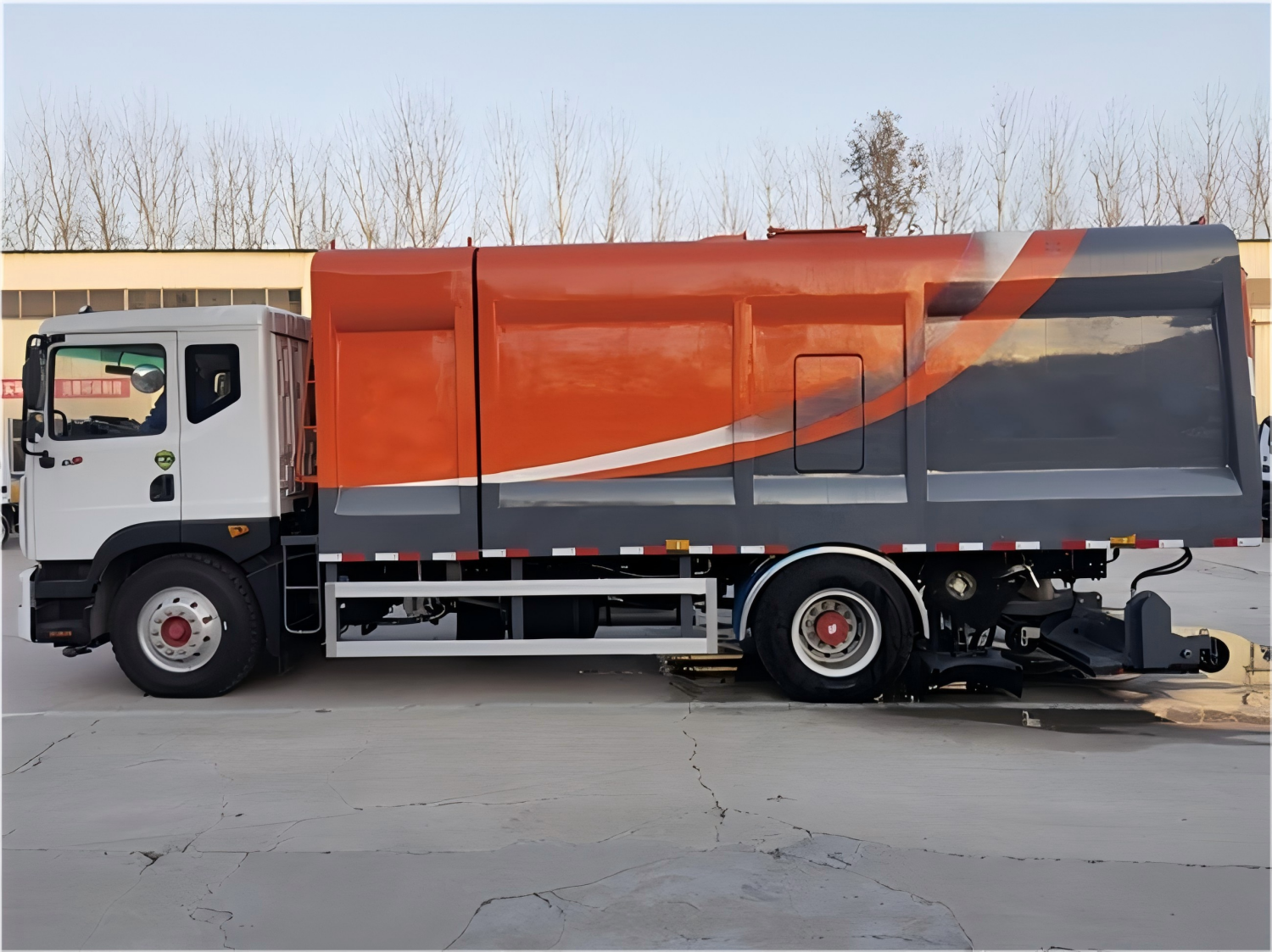

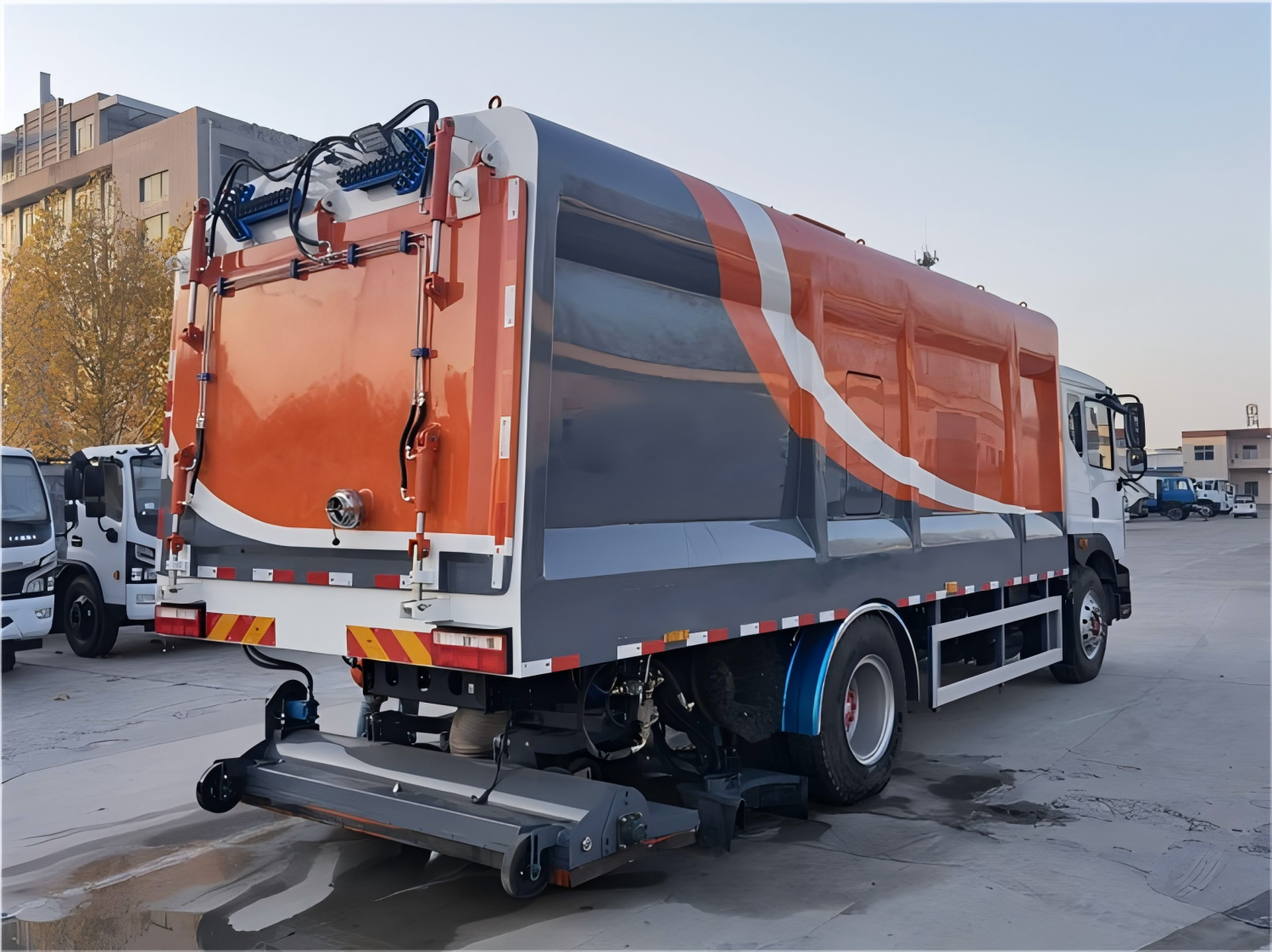

Multifunctional Wet and Dry Vacuum Truck
The wet and dry road sweeper is a wet and dry road sweeper specially developed for the highway system. It is suitable for sweeping, cleaning, washing, and watering of highways at all levels. The vehicle leads the domestic technology and has obtained many technical patents. One vehicle has multiple uses, and can realize multiple operation modes such as dry sweeping, wet sweeping, pure suction, and high-pressure cleaning. It has fast speed, low energy consumption, and high intelligence.
China's Top Certified Trailer Manufacturer!
- Professional Service, Affordable Price
- Powerful Power, Advanced Technology
- Stable And Reliable Quality, Good Performance
Description
Product Parameters
| Overall Dimensions (mm) | 8675*2490*3360 |
| Chassis Model | EQ1185LJ9CDE |
| Displacement/Power | 4000ml/143kw |
| Wheelbase | 4500mm |
| Engine Model | D4.0NS6B195 (Dongfeng Cummins) |
| Tire Specifications/Quantity | 10.00R20 18PR |
| Emission Standards | GB3847-2005 GB17691-2018 National VI |
| Rear Overhang | 2900 |
| Overall Dimensions of Upper Body | 6260/2490/1910 |
| Unloading Method | rear hydraulic box automatic lifting |
| Maximum Tilt Angle of Box | ≧45° |
| System Pressure | 12 (mpa) |
| Fuel Type | diesel |
| Operation Mode | wet and dry operation |
| Floor Washing System | The rear suction cup cleaning adopts a German imported high-pressure pump, and the tank flushing water pump adopts a domestic famous brand Weilong high-pressure centrifugal pump |
| Tanker Flushing | The front spray adopts a domestic famous brand Weilong high-pressure centrifugal pump |
| Cleaning Width (mm) | 3500-6000 |
| Maximum Cleaning Efficiency | 99% |
| Auxiliary Engine | Cummins |
| Power | 154KW/210 horsepower/diesel |
| Garbage Bin Volume | 10 cubic meters |
| Water Tank Volume | 12 cubic meters |
| Maximum Cleaning Area | 51,000-130,000 square meters per hour (depending on the amount of dust and mud and water)Garbage bin material: stainless steel |
| Vehicle Configuration | original car heating and cooling air conditioning, hydraulic steering assist, reverse unloading image, arrow light,The rear door automatically locks without leakage, and the hydraulic system adopts a well-known Taiwanese brand |
