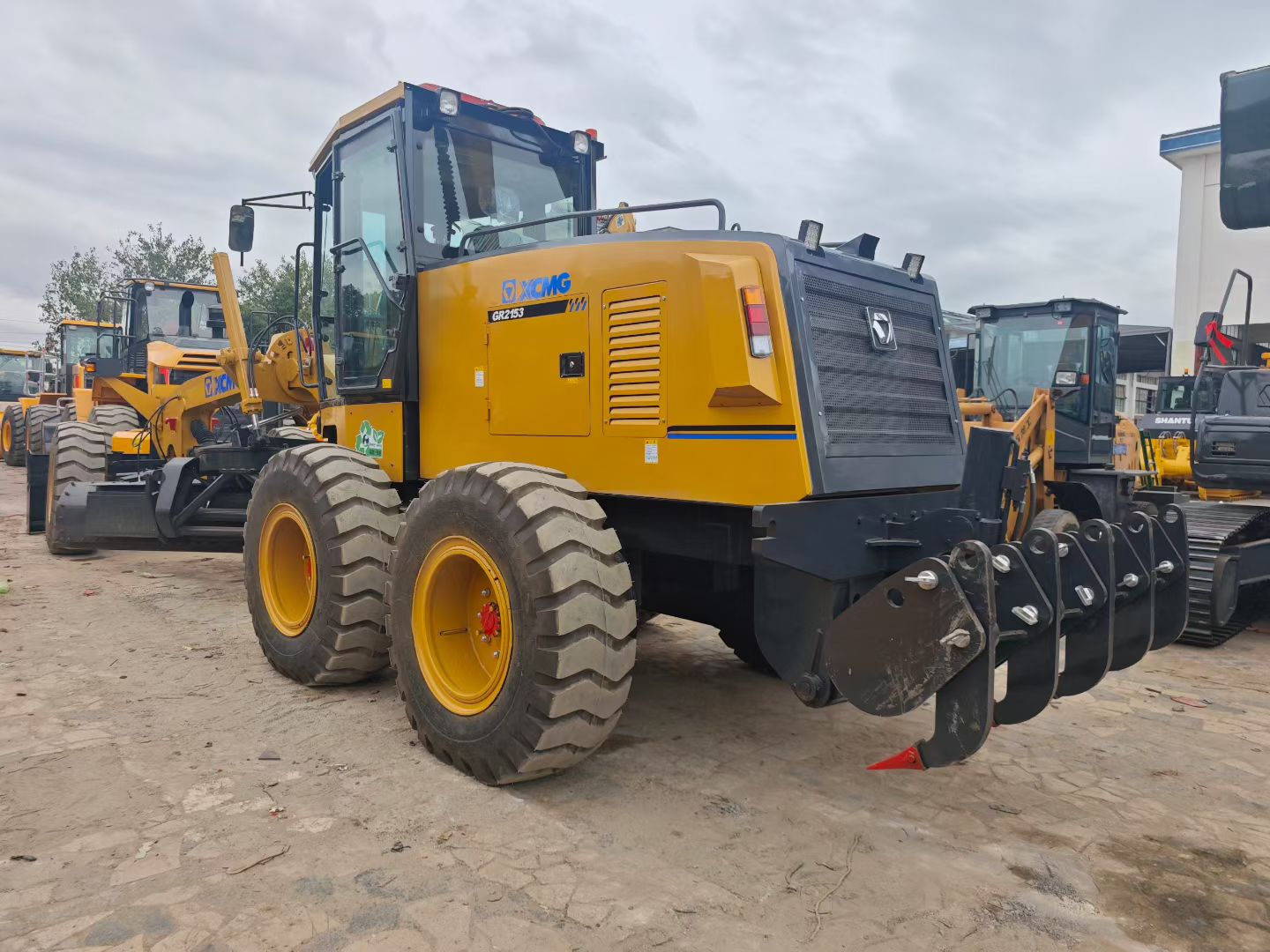

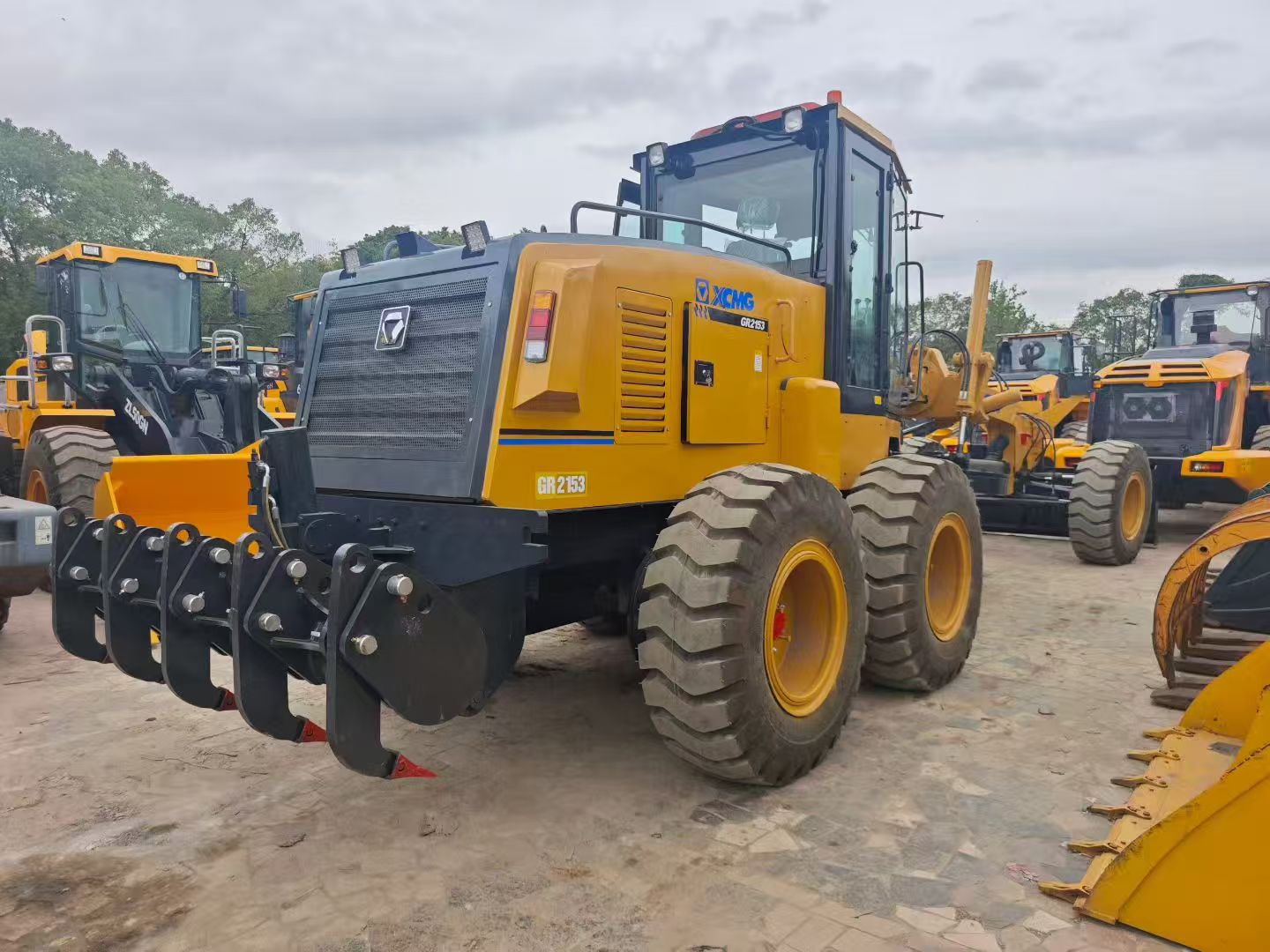

XCMG GR2153IV Motor Grader
Machine weight (kg): 16500
Blade length x chord height (mm): 4270 x 610
Engine model: Cummins Engine
Rated power (KW): 164
China's Top Certified Trailer Manufacturer!
- Professional Service, Affordable Price
- Powerful Power, Advanced Technology
- Stable And Reliable Quality, Good Performance
Description
Product Parameters
| Standard Parameters | |
| Equipment Model | GR2153 |
| Model Abbreviation | 2153 |
| Engine | |
| Model | Cummins Engine |
| Rated Power (kW) | 164 |
| Rated Speed (r/min) | 2000 |
| Hydraulic System | |
| Rated Working Pressure (MPa) | 20 |
| Driving Speed | |
| 1st Gear (Forward/Reverse) (km/h) | 5/5 |
| 2nd Gear (Forward/Reverse) (km/h) | 8/11 |
| 3rd Gear (Forward/Reverse) (km/h) | 11/23 |
| 4th Gear (Forward/Reverse) (km/h) | 19 |
| 5th Gear (Forward/Reverse) (km/h) | 23 |
| 6th Gear (Forward/Reverse) (km/h) | 38 |
| Tires | |
| Tire Specifications | 17.5-25 |
| Fuel Capacity | |
| Fuel Tank Capacity (L) | 280 |
| Transmission Capacity (L) | 38 |
| Hydraulic Oil Tank Capacity (L) | 110 |
| Overall Dimensions | |
| Overall Length (mm) | 8970 |
| Overall Width (mm) | 2625 |
| Overall Height (mm) | 3420 |
| Rear and Rear Axle Wheelbase (mm) | 6219 |
| Middle and Rear Wheelbase (mm) | 1538 |
| Wheel Track (mm) | 2156 |
| Minimum Ground Clearance (mm) | 430 |
| Operating Weight | |
| (Basic Model) Total Weight (kg) | 16500 |
| Working Performance | |
| Shovel Length × Height (mm) | 4270 x 610 |
| Shovel Lifting Height (mm) | 450 |
| Shovel Digging Depth (mm) | 500 |
| Shovel Tilt Angle (°) | 90 |
| Shovel Cutting Angle (°) | 28–70 |
| Shovel Turning Angle (°) | 360 |
| Front Wheel Steering Angle (°) | ±48 |
| Front Wheel Tilt Angle (°) | ±17 |
| Frame Hinge Steering Angle (°) | ±27 |
| Front axle sway (°) | ±15 |
| Balance box sway (°) | Front 15°, Rear 15° |
| Minimum turning radius (mm) | 7300 |
| Maximum traction (kN) | 85 |
| Maximum climbing ability (°) | 20 |
Performance Features
1. New exterior design.
2. Articulated frame with front-wheel steering, resulting in a small turning radius and high maneuverability.
3. Electro-hydraulic power shift gearbox with 6 forward gears and 3 reverse gears.
4. Uses internationally sourced hydraulic components for reliable operation.
5. Blade movement is fully hydraulically controlled.
6. Rear axle is a three-section drive axle equipped with a self-locking differential.
7. Load-bearing slewing technology for efficient operation, energy saving, and noise reduction.

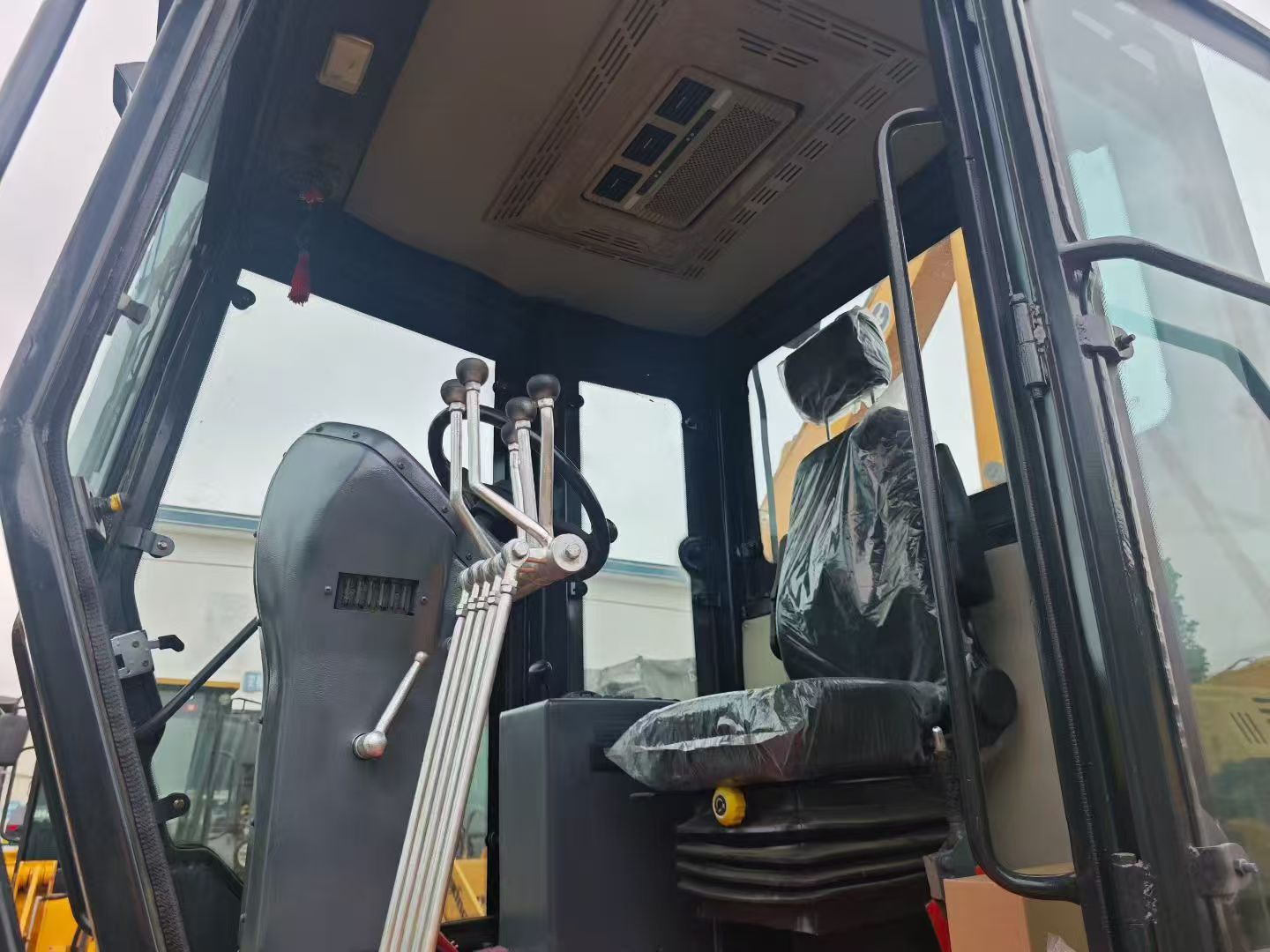

8. Adjustable control panel and seat; the control handles and instruments are logically arranged for ease of use and improved driving comfort.
9. XCMG-specific cab with surround-type heating and cooling air conditioning and soft-padded interior pillars for enhanced driving comfort.
10. Optional equipment includes a front bulldozer blade, rear ripper, front rake, and automatic leveling device.
